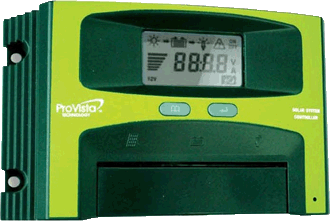

The circuit board is completely electronically protected and a large display informs the users about all operating modes with the aid of symbols including voltage, current and state of charge.
Four Series Available :
12v series : Accepts Max 29v (open circuit voltage) input
12v/24v series : 12V-24V automatically identified
12v/24v timer series : It comes with timer function on loading.
12v/24v MPPT series : Charges 10 to 30% more energy into Battery.
Features :
-
•Microcontroller digital accuracy.
•Voltage series regulation.
•PWM control / MPPT (for mppt series).
•State of Charge (SoC) advanced technology.
•Temperature compensation.
•Common positive grounding.
Graphical LCD Display shows operating states
- for operation
state of charge, fault messages.
 Voltage of Battery :  Charging Current :  Loading Current :
Specification
Rated Voltage |
12V / 24V |
Max Load current |
30A |
Input Voltage range (Open Circuit) |
12V～29V/24V～47V/<65V(MPPT) |
Typical Idle Consumption |
＜20ma |
Degree of Protection |
IP32 |
Full charge cut |
13.4V..14.2V / 26.9V..28.4V |
Low voltage cut |
11V..11.5v / ～22V..23v |
Boost Charge Voltage |
14.4V / 28.8V |
Reconnection Voltage |
12.5V / 25V |
Max wire area |
6mm |
Ambient temperature |
-20℃—50℃ |
|
