| Input |
DC Voltage |
12V or 24V or 48V or 110V |
| Voltage Range |
10-15VDC or 21-30VDC or 42-60VDC or 100-120VDC |
| No Load Current Draw |
<0.5 |
| Efficiency |
> 85% |
| DC Connector |
Cables With Clips or Car Adaptor |
| Output |
AC Voltage |
100/110/120VAC or 220/230/240 VAC |
| Continuous Power |
100W / 300W (Two Models available) |
| Surge Power |
200W / 600W (for 300w model) |
| Waveform |

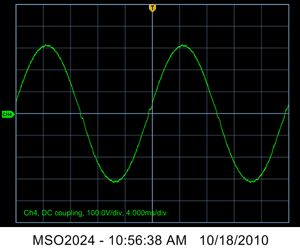

Pure Sine Wave |
| Frequency |
50Hz or 60Hz |
| AC Regulation |
3% |
| Protection |
Low Voltage Alarm |
10DC±0.5V or 20.5DC±1V or 44VDC±1V or 100VDC±1V |
| Low Voltage Shut Down |
9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V |
| Over Load |
Shut Off Output |
| Over Voltage Shut Down |
15.5V or 30.5V or 61.2V or 120V |
| Over Thermal |
Shut Off Output Automatically |
| Fuses |
Short Circuit |
| Environment |
Working Temperature |
Between -10℃ and +50℃ |
| Working Humidity |
20%～90%RH non-condensing |
| Storage Temperature |
Between -30℃ and +70℃ |
| Others |
Start |
Soft Start |
| Cooling Ways |
Cooling Fan |
| Total Harmonic Distortion |
THD < 5% |
